Decoding Moving Head Light Error Codes: Fix Pan/Tilt Error & Reset Failed

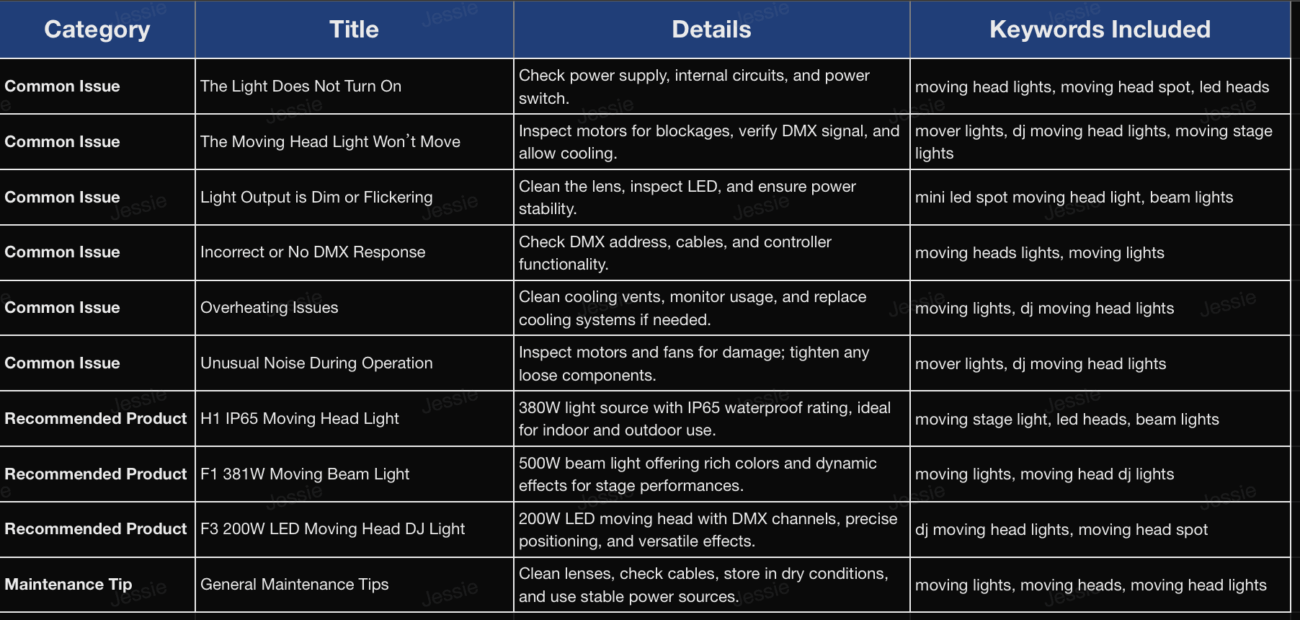

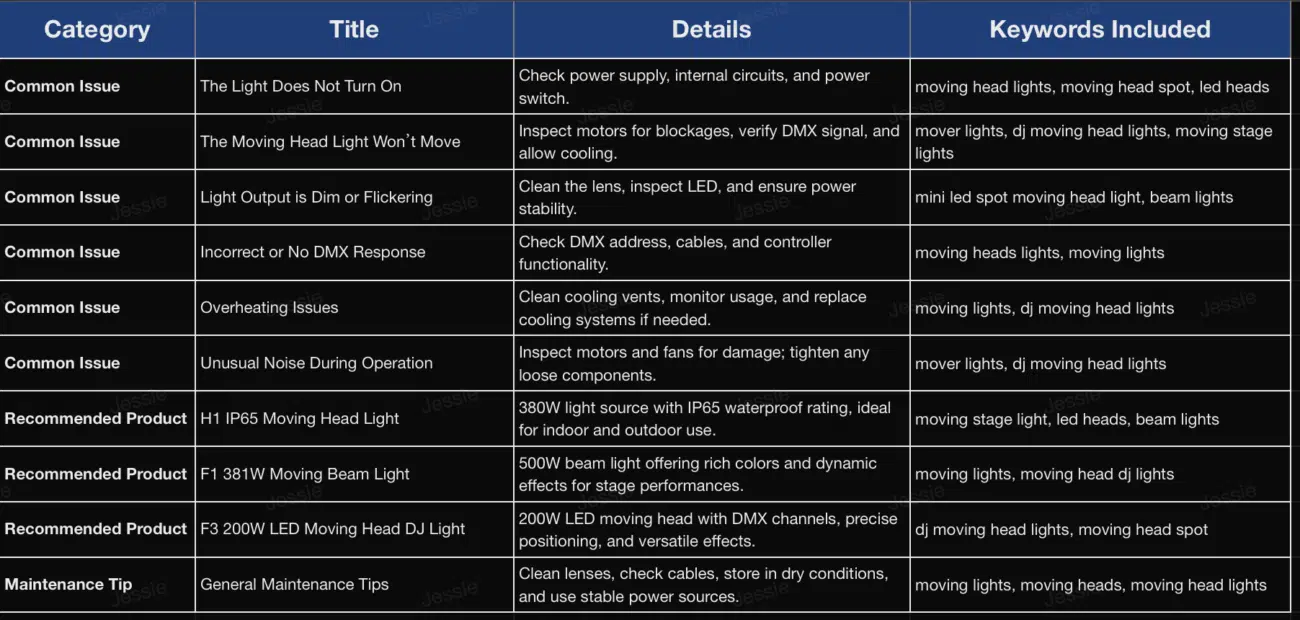

During the final check before a show begins, the most nerve-wracking moment for a stage lighting technician is sending a “Reset” command, only to see a fixture on the truss slumped over with a red error light flashing: “Pan/Tilt Error” or “Reset Failed.”
A reset failure doesn’t just cause beam misalignment and ruin your stage effects; it can also damage the motors and potentially lead to safety incidents. Based on the extensive repair experience of our senior engineer, EAson, this article will break down the causes and solutions behind these reset failures.
1. Common Reset Error Codes
- PAN / TILT Error: The fixture cannot find its initial (home) position.
- Encoder Error: The encoder has failed. The light moved, but the system doesn’t know its current coordinates.
- Feedback Error: The system issued a movement command, but the sensors detected no actual motion.
- Sensor Error: The Hall effect sensor or optocoupler is damaged, disconnected, or obstructed.
2. Why Does the Reset Fail? (4 Core Reasons)
① External Mechanical Obstruction (Most Common)
- Symptom: The motor makes a humming or grinding noise, but the head remains stuck.
- Cause: During installation, power or DMX cables become tangled between the yoke (arm) and the base.
- Solution: Check the cable management. Ensure the head has zero physical contact throughout its 540° Pan and 270° Tilt range.
② Hall Sensor Failure
Moving heads typically use magnets and Hall effect sensors to determine their “Home” (zero) position.
- Cause: The internal magnet has fallen off, or the sensor is covered in excessive dust/fog fluid residue.
- Symptom: The head spins continuously without stopping, eventually throwing an error.
- Solution: Open the arm covers to check if the magnet is still securely on its bracket. Clean the sensor using an electronic contact cleaner.
③ Drive Belt (Belt) Breakage or Looseness
- Cause: High-intensity movements and frequent, rapid strobing effects lead to belt wear and tear.
- Symptom: You can hear the motor spinning, but the head does not move with it.
- Solution: Remove the housing to replace the rubber timing belt and adjust the tensioner pulley.
④ Driver Board and Wiring Faults
- Cause: Frequent rotation causes the wire harness inside the rotating shaft to suffer from metal fatigue and break, or the driver chip overheats and burns out.
- Symptom: One axis (Pan or Tilt) loses power completely and becomes limp.
- Solution: Use a multimeter to measure the output voltage of the motor driver board.
3. How to Prevent Reset Failures
- Regular Cleaning: Perform dust removal every three months, focusing on the sensors and cooling fans.
- Safety Cable Protocol: Never wrap safety cables around the yoke. They must pass through the dedicated safety hole in the base.
- Cold Start Self-Test: Run a full “Reset” cycle test at least 1 hour before every official performance.
- Set Travel Limits: Configure Pan/Tilt limits on your lighting console to avoid unnecessary mechanical stress at extreme angles.
Summary
Reset failures in moving heads are usually caused by mechanical wear or environmental dust accumulation. By mastering the inspection of sensors and belts, you can quickly troubleshoot most issues on-site.
As a professional lighting supplier, DJclub provides more than just high-quality moving heads—we provide comprehensive technical support. If you encounter an error code you cannot resolve, feel free to consult our engineering team.
