2026 Concert Stage Lighting Procurement Guide: High-Performance Equipment List & Technical ROI Strategy

Posted by

Eason

2026-03-17

On 2026-03-17

In 2026, stage lighting is no longer just about visibility; it’s about emotional architecture.” — Eason Chen, Senior Stage Lighting Consultant with 15+ years of industry experience. When preparing for a large-scale concert in 2026, stage lighting technology has been gradually evolving, and the procurement of such equipment has also changed.

People are no longer merely pursuing “illumination”, but more about stimulating people’s senses — such as the immersive light and shadow effects of dreaminess and a sense of technology, or synchronous dancing with music. Especially the upsurge of AI technology has promoted the development of stage lighting technology. “AI algorithms are real-time analyzing on-site data to predict the best light and shadow patterns, thereby enhancing visual appeal and reducing errors caused by manual intervention.” (Source: KIMU Lighting, October 2025)

In addition, smaller equipment size but higher lumen density is also one of the trends. Laser light sources and hybrid power light sources have become mainstream. As mentioned in the Vectorworks Trend Report 2026, “Designers are replacing bulky equipment with compact moving head lights and slim LED strip lights, which not only saves hoisting load but also greatly reduces transportation costs.”

2026 Concert Lighting Key Metrics Comparison

Equipment Type	Core Tech (2026 Trend)	Key Metric for Procurement	Primary Function
Beam Light	Laser / Hybrid Source	Illuminance @ 10m (Lux)	Aerial Effects & Piercing Beams
Spot Light	High-CRI LED Engine	Framing System Accuracy	Gobo Projection & Texturing
Wash Light	RGBAL / Multi-color LED	CRI >90; TLCI >92	Color Filling & Skin Tone
Ellipsoidal	Full-color LED Source	Field Angle Consistency	Precision Key Lighting

So, how to purchase stage lighting equipment for large-scale concerts? Below is a professional stage lighting equipment purchase guide compiled for you:

Ⅰ.Core Equipment List for Large-Scale Concert Stage Lighting

1. Moving Heads

Moving heads are the main source of visual impact for concerts.

Beam Lights:

When purchasing, prioritize their penetration effect. In 2026, the mainstream is laser light sources or laser + LED hybrid light sources, with thinner and sharper beams and strong penetration. These lights have a “physical sense”, making on-site audiences feel as if they can really touch the light beam when reaching out, with incredibly clear boundaries. In addition, this makes the audience feel as if the distant interference in the venue has disappeared, and this extreme visual effect makes the audience instantly enter a focused state of “flow”.

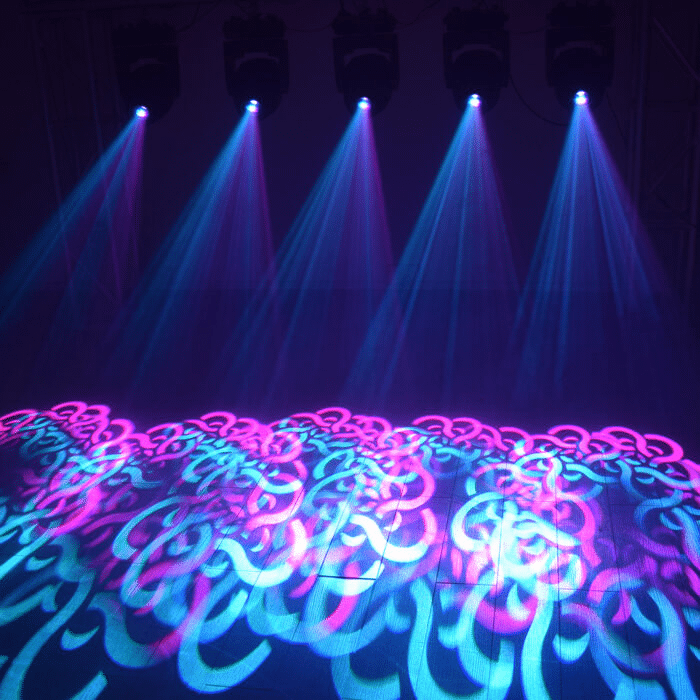

Spot Lights:

They make the stage no longer an empty plane but have a sense of texture. For example, projecting ripples when singing a slow song, the audience will feel a “calm” atmosphere. The precise character positioning only illuminates the singer, making the audience’s attention instantly focus on the artist. When purchasing, the key point is the clarity of the Gobo. It is recommended to choose products with a three-axis or four-axis cutting system.

Wash Lights:

Lay the emotional background to create a “immersive wrap” of colors, allowing the audience to instantly enter the context of the song; in addition, it also makes the singer’s skin tone look natural and translucent, as if adding a layer of makeup. Key purchase points: Choose RGBAL five-in-one or more color LEDs, which have better color reproduction (CRI > 90).

2. Front Lights and Base Lighting

Ellipsoidal Lights:

Used for character spot lighting. Compared with other types, ellipsoidal lights can manually or accurately adjust edges with no color difference at all. Moreover, in super large venues, ellipsoidal lights can project light extremely far and highly focused, which is difficult for multi-functional spot lights to match. When purchasing, it is recommended to choose full-color LED ellipsoidal lights first, which saves the trouble of changing color filters.

Fresnel Lights:

Provide extremely soft fill light, making the light “melt like butter” and making the artist’s facial light natural. In addition, as front fill light, Fresnel lights can also smooth out the shadows under the singer’s cheeks and nose wings, making the facial light softer and more uniform.

3. Environment and Special Effects Equipment

LED Strip Lights/Pixel Lights:

Used to outline the stage outline or background. For example, these lines can create a strange stage background, making the stage look like a suddenly emerging futuristic building, turning the originally boring stage into a story scene.

Blinders:

“Explosive” lights at the climax of the concert. It can flash synchronously at 100% brightness at the chorus climax and the moment of the big drumbeat, instantly illuminating the dark audience area like daylight. The audience will involuntarily scream and jump, making the atmosphere of the whole venue reach a climax.

Haze/Fog Machines:

Without haze, the light beam has no soul. When the haze floats in the air, it produces the Tyndall effect, with a stunning effect. Moreover, the haze is like a transparent canvas, and what the audience sees is a constantly changing spatial maze composed of light. It is recommended to buy a high-precision haze machine (Hazer).

II. 3 Key Words for Purchasing Concert Stage Lighting Equipment in 2026

1. Network Ready (Digital Protocol)

Large-scale concerts may require hundreds of lights, which rely heavily on advanced control systems and digital protocols. For such scenarios, traditional DMX cables have become inadequate.

Must-have: Purchase lights that support Art-Net or sACN protocols, and also support RDM.

Expert Tip: Check if the fixture supports RDM over Art-Net, which allows you to change DMX addresses remotely from the console—a lifesaver when lights are rigged 15 meters high.

2. Lightweight and Protection (IP Rating)

If outdoor tours are involved, IP65 protection level is a rigid demand. Even indoors, a high protection level can prevent dust. In addition, modern lights have been greatly reduced in weight through optimized heat dissipation structures, making them safer.

IP Rating

IP Rating	Solids Protection	Liquids Protection	2026 Application
IP20	Finger-proof	No protection	Indoor theaters / TV Studios
IP65	Dust-tight	Water jets (Rain)	Outdoor Concerts / Stadium Tours
IP66	Dust-tight	Powerful water jets	Coastal stages / Extreme weather

3. Color Science (CRI & TLCI)

Nowadays, concerts are often recorded in high definition and live-streamed synchronously. Please be sure to confirm the TLCI of the lights. The recommended TLCI value is > 90, so that the skin color under the lens will not appear strange green or purple.

III. Pitfall Avoidance Guide: Ask These 3 Questions Before Buying

“Is the RDM function of this light complete?”

“What is the fan noise decibel?” — Although the concert is loud, it will be affected during the quiet opening or slow song sessions.

“Is there a local spare parts warehouse?” — Stage lighting is a consumable item. If the motor, bulb, or lens is broken, maintenance parts need to be available locally.

About the Author：Eason (Yifan) Chen

Stage Lighting Expert & Digital Strategist

With 15+ years of industry expertise, Eason Chen is a leading authority in stage lighting and digital manufacturing. A regular technical consultant and contributor at premier global trade shows—including Prolight + Sound (Frankfurt & Guangzhou) and LDI (Las Vegas)—he specializes in bridging the gap between cutting-edge DMX protocols and scalable manufacturing efficiency.

When executing large-scale projects such as concerts, you need a stable and cost-effective stage lighting supplier. DJclub, as a representative brand of high-performance professional lighting at competitive prices, is your ideal partner.

DJClub boasts a 5,000㎡ modern production base and automated production lines, capable of delivering over 5,000 sets of high-performance equipment monthly.

Fully Compliant: All beam lights, LED PAR lights, pattern lights, and zoom lights are CE and RoHS certified, 100% compliant with European and American safety standards.

Stringent Quality Control: Since 2015, a rigorous QC system ensures that every piece of equipment can withstand the high-intensity operating demands of a concert venue.

Choose DJclub to secure a stable supply for your concert visual solutions.
